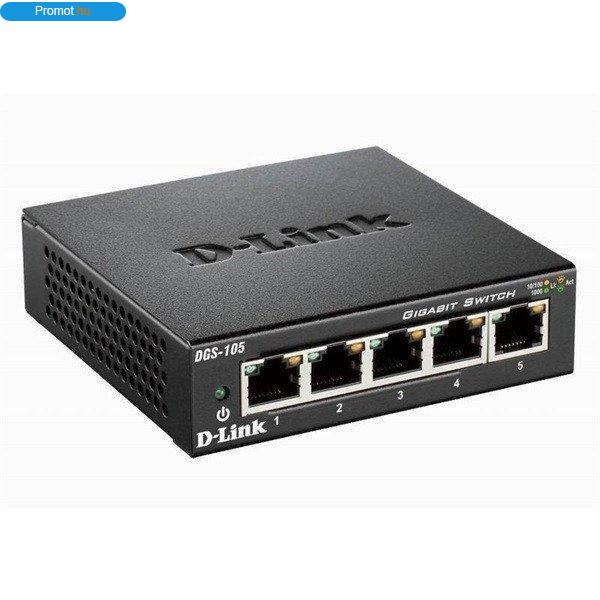

D-LINK Switch 5x1000Mbps Fémházas Asztali, DGS-105/E
D-LINK Switch 5x1000Mbps Fémházas Asztali, DGS-105/E Technical Specifications:
D-Link DGS-105 Specifications DGS-105 DGS-108
Switching Fabric 10Gbps 16Gbps Standards IEEE
802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast
Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet
(twistedpair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x
Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet
(EEE) Protocol CSMA/CD Data Transfer Rates
Ethernet: - 10 Mbps (half duplex) - 20 Mbps (full duplex) Fast
Ethernet: - 100 Mbps (half duplex) - 200 Mbps (full duplex) Gigabit
Ethernet: - 2000 Mbps (full duplex) Topology Star
Network Cables 10BASE-T: - UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX: - UTP CAT 5/5e
(100 m max.) - EIA/TIA-568 100-ohm STP (100 m max.) Media
Interface Exchange Auto MDI/MDIX adjustment for all ports LED
Indicators Per port:Link/Activity Per device:Power
Transmission Method Store-and-forward MAC Address Table 2K
8K MAC Address Learning Automatic Update Packet
Filtering/Forwarding Rates Ethernet: 14,880 pps per port Fast
Ethernet:148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 128KB per device Jumbo Frames 9,000 Bytes
QoS 4 Queues, strict mode DC Input External 5 V/1 A
Level V Power Adapter Power Consumption Power On (Standby):
- DC input: 0.5 watts - AC input: 1.0 watts Maximum: - DC input:
2.01 watts - AC input: 3.10 watts Power On (Standby):
- DC input: 0.55 watts - AC input: 1.0 watts Maximum: - DC
input: 2.8 watts - AC input: 4.5 watts Heat Dissipation
Power On (Standby) AC input:3.41 BTU/h Maximum DC input:6.854 BTU/h
Power On (Standby) AC input:3.41 BTU/h Maximum DC
input:9.548 BTU/h MTBF 1,688,338 hours 2,053,751 hours
Operating Temperature 32 to 130 °F (30 to 50 °C) Storage
Temperature -14 to 158 °F (10 to 70 °C) Operating Humidity 10% to
90% RH non-condensing Storage Humidity 5% to 90% RH non-condensing
Dimensions 3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm) 6.3 x 4.0
x 1.1 inches (162 x 102 x 28 mm) Weight 10.08 ounces (286 grams)
15.52 ounces (440 grams) Certifications FCC Class B
ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL
CB
D-Link DGS-105 Specifications DGS-105 DGS-108
Switching Fabric 10Gbps 16Gbps Standards IEEE
802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast
Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet
(twistedpair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x
Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet
(EEE) Protocol CSMA/CD Data Transfer Rates
Ethernet: - 10 Mbps (half duplex) - 20 Mbps (full duplex) Fast
Ethernet: - 100 Mbps (half duplex) - 200 Mbps (full duplex) Gigabit
Ethernet: - 2000 Mbps (full duplex) Topology Star
Network Cables 10BASE-T: - UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX: - UTP CAT 5/5e
(100 m max.) - EIA/TIA-568 100-ohm STP (100 m max.) Media
Interface Exchange Auto MDI/MDIX adjustment for all ports LED
Indicators Per port:Link/Activity Per device:Power
Transmission Method Store-and-forward MAC Address Table 2K
8K MAC Address Learning Automatic Update Packet
Filtering/Forwarding Rates Ethernet: 14,880 pps per port Fast
Ethernet:148,800 pps per port Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 128KB per device Jumbo Frames 9,000 Bytes
QoS 4 Queues, strict mode DC Input External 5 V/1 A
Level V Power Adapter Power Consumption Power On (Standby):
- DC input: 0.5 watts - AC input: 1.0 watts Maximum: - DC input:
2.01 watts - AC input: 3.10 watts Power On (Standby):
- DC input: 0.55 watts - AC input: 1.0 watts Maximum: - DC
input: 2.8 watts - AC input: 4.5 watts Heat Dissipation
Power On (Standby) AC input:3.41 BTU/h Maximum DC input:6.854 BTU/h
Power On (Standby) AC input:3.41 BTU/h Maximum DC
input:9.548 BTU/h MTBF 1,688,338 hours 2,053,751 hours
Operating Temperature 32 to 130 °F (30 to 50 °C) Storage
Temperature -14 to 158 °F (10 to 70 °C) Operating Humidity 10% to
90% RH non-condensing Storage Humidity 5% to 90% RH non-condensing
Dimensions 3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm) 6.3 x 4.0
x 1.1 inches (162 x 102 x 28 mm) Weight 10.08 ounces (286 grams)
15.52 ounces (440 grams) Certifications FCC Class B
ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL
CB
Adatlap
| Ár: | 8.690 Ft |
| A hirdető: | Kereskedőtől |
| Értékesítés típusa: | Eladó |
| Termék: | Egyéb számítógép alkatrészek, kiegészítők |
| Feladás dátuma: | 2025.04.20 |
| Eddig megtekintették 4 alkalommal | |
