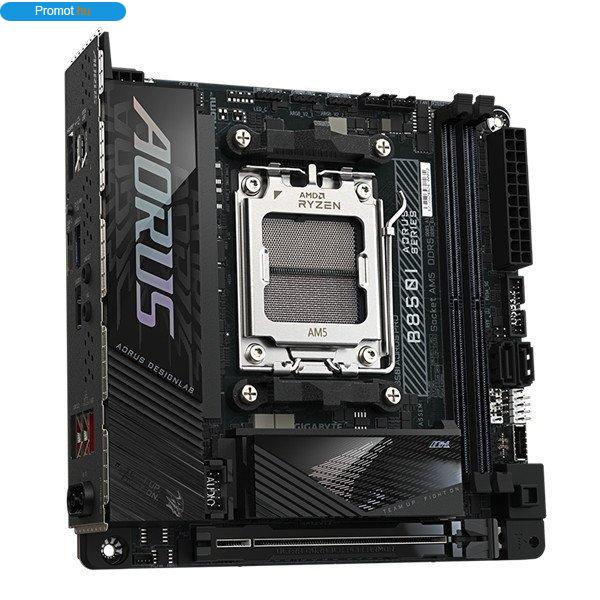

GIGABYTE Alaplap AM5 B850I AORUS PRO AMD B850, mini-ITX CPU AMD Socket AM5,
support for: AMD Ryzen? 9000 Series Processors/ AMD Ryzen? 8000 Series
Processors/ AMD Ryzen? 7000 Series Processors (Go to GIGABYTE's website for
the latest CPU support list.) Chipset AMD B850 Memory Support for
DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)
/ 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) /
5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to
128 GB (64 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO?) and
Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration
may affect the supported memory types, data rate (speed), and number of DRAM
modules, please refer to Memory Support List on GIGABYTE's website for more
information.) Onboard Graphics Integrated Graphics Processor with AMD
Radeon? Graphics support: - 1 x HDMI port, supporting a maximum resolution of
4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. **
Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications
may vary depending on CPU support.) Audio RealtekŽ ALC4080 CODEC High
Definition Audio 2-channel LAN RealtekŽ 2.5GbE LAN chip (2.5 Gbps/1
Gbps/100 Mbps) Wireless Communication module RealtekŽ Wi-Fi 7 RTL8922AE -
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands -
BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate
may vary depending on environment and equipment.) * Wi-Fi 7 features require
Windows 11 SV3 to function properly. (There is no support driver for Windows
10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual
country's regulations. Expansion Slots 1 x PCI Express x16 slot,
integrated in the CPU: AMD Ryzen? 9000/7000 Series Processors support PCIe 5.0
x16 mode AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The
PCIEX16 slot can only support a graphics card or an NVMe SSD. Storage
Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket
3, M key, type 2280 SSDs: AMD Ryzen? 9000/7000 Series Processors support PCIe
5.0 x4/x2 SSDs AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0
x4/x2 SSDs AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2
SSDs 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in
the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 2 x SATA
6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD
storage devices * RAID 5 is only available on AMD Ryzen? 9000 Series
Processors. RAID 0 and RAID 1 support for SATA storage devices USB CPU:
- 1 x USB Type-CŽ port on the back panel, with USB 3.2 Gen 2 support - 2 x USB
3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-CŽ port
with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB
3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the
internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2
ports available through the internal USB header) Internal I/O Connectors 1
x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU
fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x
addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket
3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker
header 1 x front panel audio header (routed from the adapter card on the rear
panel) 1 x USB Type-CŽ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1
header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x
chassis intrusion header Back Panel Connectors 1 x Q-Flash Plus button 1
x HDMI port* 2 x antenna connectors (2T2R) 1 x USB Type-CŽ port, with USB 3.2
Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2
x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks * Actual support may
vary by CPU. I/O Controller iTEŽ I/O Controller Chip H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling
flow rate detection Fan fail warning Fan speed control * Whether the fan
speed control function is supported will depend on the fan you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM
2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control
Center (GCC) * Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard
specifications. Support for Q-Flash Support for Q-Flash Plus Support for
Smart Backup Bundled Software NortonŽ Internet Security (OEM version) LAN
bandwidth management software Operating System Support for Windows 11
64-bit Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
