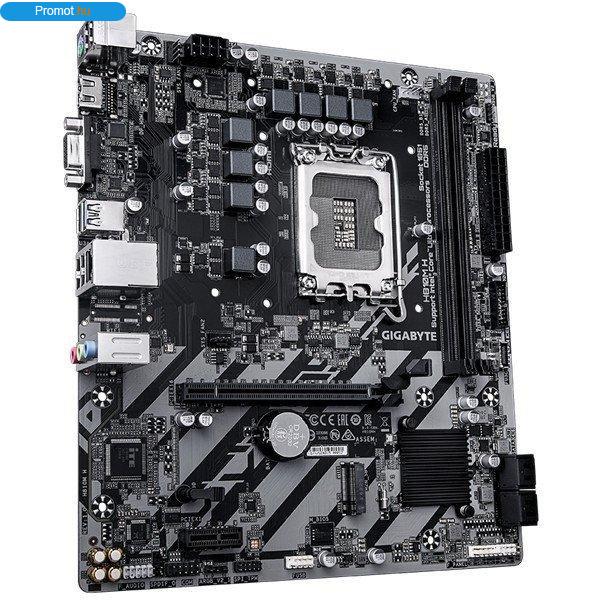

GIGABYTE Alaplap S1851 H810M H INTEL H810, mATX CPU LGA1851 socket: Support
for IntelŽ Core? Ultra Processors (Go to GIGABYTE's website for the latest CPU
support list.) L3 cache varies with CPU Chipset IntelŽ H810 Express
Chipset Memory Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5
DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system
memory Dual channel memory architecture Support for ECC Un-buffered DIMM
1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory
Profile (XMP) memory modules (The CPU and memory configuration may affect the
supported memory types, data rate (speed), and number of DRAM modules, please
refer to Memory Support List on GIGABYTE's website for more information.)
Onboard Graphics Integrated Graphics Processor-IntelŽ HD Graphics support: -
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for
HDMI 2.1 version and HDCP 2.3. - 1 x D-Sub port, supporting a maximum
resolution of 1920x1200@60 Hz (Graphics specifications may vary depending on
CPU support.) Audio RealtekŽ Audio CODEC High Definition Audio
2/4/5.1/7.1-channel * You can change the functionality of an audio jack using
the audio software. To configure 7.1-channel audio, access the audio software
for audio settings. Support for S/PDIF Out LAN RealtekŽ GbE LAN chip (1
Gbps/100 Mbps/10 Mbps) Expansion Slots CPU: - 1 x PCI Express x16 slot,
supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only
support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot,
supporting PCIe 3.0 and running at x1 (PCIEX1) Storage Interface Chipset: -
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x
SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA
storage devices USB Chipset: - 1 x USB Type-CŽ port with USB 3.2 Gen 1
support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1
ports on the back panel, 2 ports available through the internal USB header) - 3
x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the
internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back
panel Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x
8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x
addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA
6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x
S/PDIF Out header 1 x USB Type-CŽ header, with USB 3.2 Gen 1 support 1 x USB
3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS
jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port
(Note) 1 x D-Sub port 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 1 x RJ-45
port 3 x audio jacks (Note) Actual support may vary by CPU. I/O
Controller iTEŽ I/O Controller Chip H/W Monitoring Voltage detection
Temperature detection Fan speed detection Water cooling flow rate detection
Fan fail warning Fan speed control * Whether the fan speed control function
is supported will depend on the fan you install. BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI
5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available
applications in GCC may vary by motherboard model. Supported functions of each
application may also vary depending on motherboard specifications. Support
for Q-Flash Support for Smart Backup Bundled Software NortonŽ Internet
Security (OEM version) LAN bandwidth management software Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit * The IntelŽ NPU
driver is only supported on Windows 11. Form Factor Micro ATX Form Factor;
24.4cm x 21.5cm
