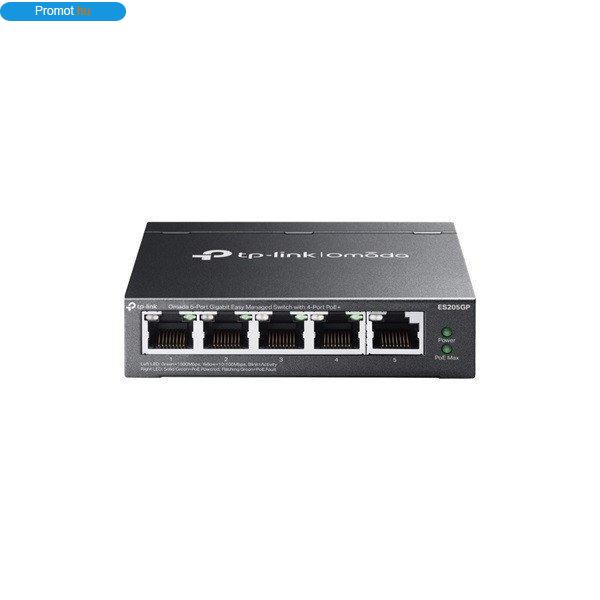

TP-LINK Switch 5x1000Mbps (1xPOE + 4xPOE+) Fémházas Easy Smart (Omada), ES205GP
HARDWARE FEATURES Interface ? 5× 10/100/1000 Mbps RJ45 Ports (Ports 1?4 Support
802.3at PoE+ and 802.3af PoE)? Auto-Negotiation/Auto MDI/MDIX Fan Quantity
Fanless Installation ? Desktop? Wall Mount Physical Security Lock ? Power Supply
DC Power Adapter (Output: 53.5 VDC/ 1.31 A) PoE Ports (RJ45) ? Standard: 802.3af
PoE and 802.3at PoE+ compliant? PoE Ports: 4 ports? PoE Budget: 65 W available
for all PoE+ ports, 30W max per port? PoE Auto Recovery?? Up to 250m PoE
transmission distance** Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Surge Protection ą6kV PERFORMANCE Switching Capacity 10 Gbps Packet Forwarding
Rate 7.4 Mpps MAC Address Table 8K Packet Buffer Memory 4 Mbit Jumbo Frame 15 KB
SOFTWARE FEATURES Quality of Service ? Port-based/802.1p/DSCP QoS? 8 Priority
Queues? Priority Schedule Mode- WRR (Weighted Round Robin)? Queue Weight Config?
Bandwidth Control- Port-Based Rating Limit? Storm Control- Multiple Control
Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control? L2 Features ?
Static Link Aggregation? Loop Prevention / Loopback Detection? Flow Control-
802.3x Flow Control? Mirroring- Port Mirroring- One-to-One- Many-to-One-
Ingress/Egress/Both? Port Statistics- Port Mirror Status- Traffic Statistics?
802.1ab LLDP L2 Multicast ? IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN ? MTU VLAN? Port-Based VLAN? 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Transmission Method Store-And-Forward Management Features Omada App Yes.
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or
Omada Software Controller. Centralized Management ? Omada Cloud-Based
Controller? Omada Hardware Controller? Omada Software Controller Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based
Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires
the use of Omada Cloud-Based Controller Management Features ? Web-based GUI?
DHCP Client? Cable Diagnostics? Automatic Device Discovery?? Batch
Configuration?? Batch Firmware Upgrading?? Unified Configuration? OTHERS
Certification FCC, CE, RoHS Package Content ? ES205GP? Power Adapter?
Installation Guide? Rubber Feet Environment ? Operating Temperature: 0?~40?
(32?~104?)? Storage Temperature: -40?~70? (-40?~158?)? Operating Humidity:
10%~90% non-condensing? Storage Humidity: 5%~90% non-condensing
