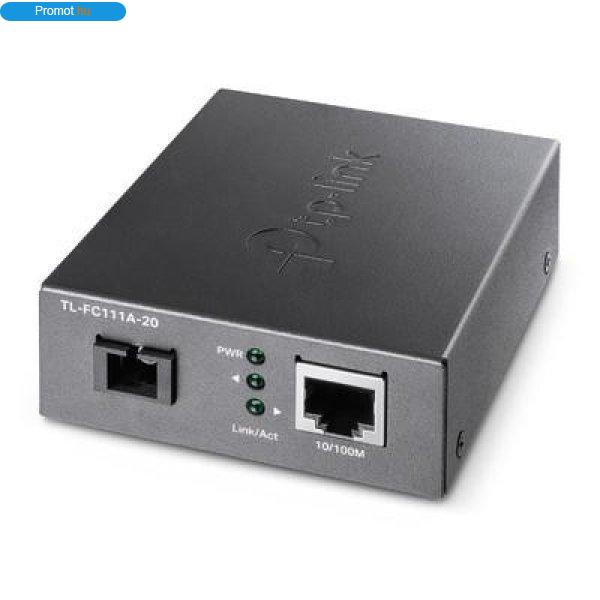

TP-LINK Optikai Media Konverter WDM 100(réz)-100FX(SC) Single mód, FC111A-20
NETWORK Standards and Protocols IEEE802.3, IEEE802.3i,
IEEE802.3u ENVIRONMENT Operating Temperature 0°C to
50°C (32°F to 122°F) Storage Temperature -40°C to 70°C (-40°F to
158°F) Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing HARDWARE
FEATURES Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or
above (?100 m) Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act Dimensions ( W x D x H ) 94.5*73*27 mm
Wave Length 1550 nm TX, 1310 nm RX ANTENNA
Connector Type 1 SC fiber optic, 1 RJ45 jack MEDIA CONVERTER
& MODULE Standards and Protocols IEEE 802.3, IEEE 802.3i,
IEEE802.3u Basic Function Auto-negotiation of half-duplex /
full-duplex transfer mode Full-duplex flow control (IEEE 802.3x)
Half-duplex flow control (Backpressure) Extends fiber distance up to 20km
(12.4 miles) Ports 1x 100M single SC/UPC port 1x 10/100M RJ45
port (Auto MDI/MDIX) WDM TX 1550 nm WDM RX 1310 nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m) Network Media 100BASE-T UTP
category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m)
Network Media 100BASE-FX Single-mode fiber LED Indicators PWR,
Link/Act Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm)
Power Supply External Power Adapter: 5 V/0.6 A Safety &
Emission FCC, CE, RoHS Fiber Type 9/125 ?m single-mode fber (?20
km) Environment Operating Temperature: 0?~50? (32?~122?) Storage
Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
