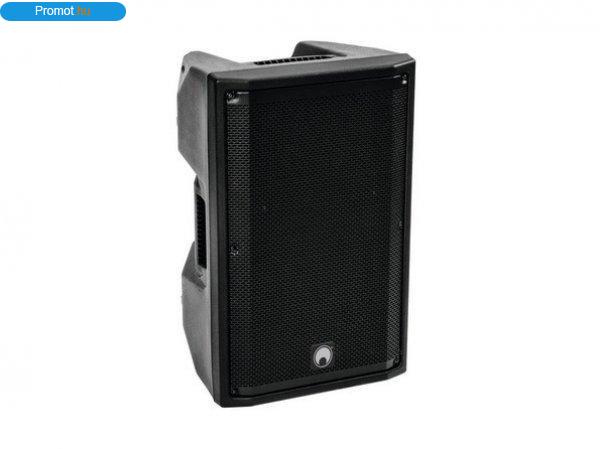

Active 15/2 full range system for mobile live and DJ applications
DSP-controlled biamp amplifier (LF class D, HF class A/B) Application presets
for quick sound contouring: - LIVE (linear adjustment) - MUSIC (slight low
and high frequency boost) - SPEECH (optimized speech intelligibility) - DJ
(increased presence and bass) - TRIPOD (for stand mounting) - MONITOR (for
use as a floor monitor) - WALL (for wall mounting) 24-bit DSP with
adjustable high-pass filter, parametric 3-band EQ and signal delay Built-in
Bluetooth player for audio streaming from compatible Bluetooth devices such as
smartphones, tablets and notebooks 2-way bassreflex enclosure with 38 cm
woofer and 4 cm titanium driver Alphanumeric LCD with blue backlight 2
mic/line inputs (XLR/6.3 mm jack) with separate level controls Parallel XLR
output for linking further active speaker systems Limiter for overload
protection Master volume/DSP push control Power, signal and limit LED
Stable plastic housing with protective grille and handles 36 mm flange for
stand installation Applications: standing, as floor monitor, on a speaker
stand or wall holder Master Equalizer: 1 x 3 band tone control
Power supply: 230 V AC, 50 Hz
Amplifier power: 300 W RMS LF, 60 W RMS HF
LF speaker: 38 cm bass/mids (15") with 76 mm voice coil
HF speaker: 40 mm driver (1.75")
Inputs mic/line: combination XLR/6.3 mm jack, bal.
Parallel output: XLR, bal.
Sensitivity: 96 dB Weight:
19.65 kg Size of woofer: (15") ca. 38
cm Number of bass-woofer: 1 Stück
Frequency range: 50 - 20000 Hz
Height: 70 cm Depth: 45
cm Width: 37 cm
