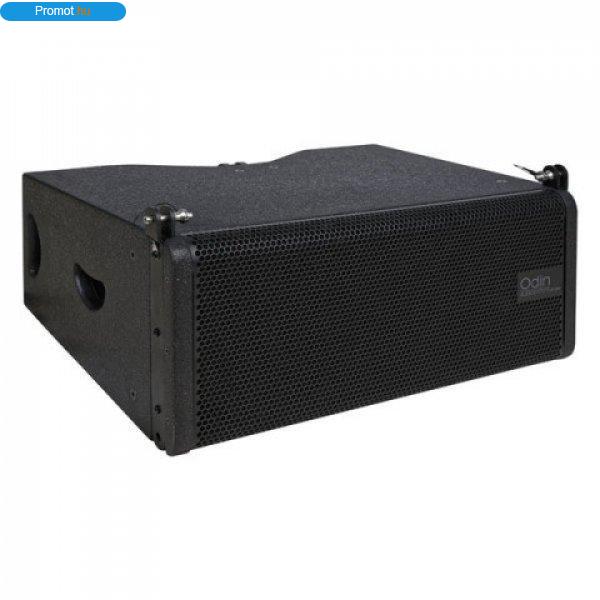

ODIN T-8A aktív line array modul
• CELESTION components inside• Waveguide for optimized
low-mid frequency directivity• Single user 3-point suspension
system• DSP optimized Amplification ensures highest
reliability• Multivoltage Power supply with active PFCSystem: 2-way
full range, Active Array ElementAMP Power: 800 W Continuous, Bi-AMP(Class D-650
W LF, Class AB-150 W HF), 3200W Peak Speaker: 2x 1" Celestion
Neodymium Compression Driver,1.75" Voice Coil, 80W RMS, 320W Peak2x 8"
Celestion Neodymium MID Woofer, Water Resistant Coating, 2– Voice
Coil, 400W-RMS/1600W-Peak Frequency Response (+/-3dB): 80 Hz - 19
kHz MAX SPL @ 1m: 129dBCrossover frequency: 1,6 KHz Dispersion(-6dB):
100° Horizontal / 10° Vertical Cooling: Passive Cooling +
forced cooling insideAudio Connector: XLR In- and outputData Connector: RJ45
Date In & Link Cascading ConnectorExternal Controls: 9 Fixed Preset + 1
Editable preset, Power Switch with LED indicators for Clip / SIG / PROTDSP
Processor: 32 bit , 24bit/48kHz Audio conversion AD/DAElectronic Protections:
Thermal / Convection-Fan / Overload / Digital Limiter / CompressorMains
Connector: Neutrik PowerCON Connector In & Out Power Supply: 100 ~
240VAC, 50Hz/60HzPower Consumption: 1100WEnclosure Construction: 18mm Birch
Plywood, Resistant Black Paint, 1.5T Metal Grill with Foam, Two Handles on Each
Side, Water Resistant CoatingMounting: 3-point Suspension, Horizontal Trapezoid
2 x 6.5°Dimensions (LxWxH): 635 x 468 x 300 mm Net Weight: 22.5 Kg
/ 49.5 IbsOptional Accessories: FlybarPolemount AdaptorGround stacking
feetFlying PinDSP Network Interface
low-mid frequency directivity• Single user 3-point suspension
system• DSP optimized Amplification ensures highest
reliability• Multivoltage Power supply with active PFCSystem: 2-way
full range, Active Array ElementAMP Power: 800 W Continuous, Bi-AMP(Class D-650
W LF, Class AB-150 W HF), 3200W Peak Speaker: 2x 1" Celestion
Neodymium Compression Driver,1.75" Voice Coil, 80W RMS, 320W Peak2x 8"
Celestion Neodymium MID Woofer, Water Resistant Coating, 2– Voice
Coil, 400W-RMS/1600W-Peak Frequency Response (+/-3dB): 80 Hz - 19
kHz MAX SPL @ 1m: 129dBCrossover frequency: 1,6 KHz Dispersion(-6dB):
100° Horizontal / 10° Vertical Cooling: Passive Cooling +
forced cooling insideAudio Connector: XLR In- and outputData Connector: RJ45
Date In & Link Cascading ConnectorExternal Controls: 9 Fixed Preset + 1
Editable preset, Power Switch with LED indicators for Clip / SIG / PROTDSP
Processor: 32 bit , 24bit/48kHz Audio conversion AD/DAElectronic Protections:
Thermal / Convection-Fan / Overload / Digital Limiter / CompressorMains
Connector: Neutrik PowerCON Connector In & Out Power Supply: 100 ~
240VAC, 50Hz/60HzPower Consumption: 1100WEnclosure Construction: 18mm Birch
Plywood, Resistant Black Paint, 1.5T Metal Grill with Foam, Two Handles on Each
Side, Water Resistant CoatingMounting: 3-point Suspension, Horizontal Trapezoid
2 x 6.5°Dimensions (LxWxH): 635 x 468 x 300 mm Net Weight: 22.5 Kg
/ 49.5 IbsOptional Accessories: FlybarPolemount AdaptorGround stacking
feetFlying PinDSP Network Interface
Adatlap
| Ár: | 905.549 Ft |
| A hirdető: | Kereskedőtől |
| Értékesítés típusa: | Eladó |
| Állapota: | Új |
| Feladás dátuma: | 2024.12.21 |
| Eddig megtekintették 103 alkalommal | |
